Industrial High-Volume, Low-Speed (HVLS) Fans in South Carolina
High-volume, low-speed (HVLS) fans are large-diameter fans designed to circulate high volumes of air while operating at low speeds. They achieve this function by directing the air downward. Once the air hits the floor, it disperses outward horizontally until it hits the walls or airflow from another fan, which then pushes it upward back toward the fan. The result is more even floor-to-ceiling air circulation and temperature regulation with lower energy utilization.
Due to the above benefits, High-Volume, Low-Speed fans see use in a wide range of industrial and commercial locations. Some of the typical facilities in which they are integrated include barns, manufacturing facilities and warehouses, medical offices, shopping malls and sporting centers, and worship centers. They are also employed in temporary structures, such as camps and storm shelters.
At Indventech, we maintain a broad selection of High-Volume, Low-Speed fan services—such as installation, servicing, and repair—to ensure our customers’ fans provide optimal performance within their facilities. Throughout South Carolina and the southeast, we offer services including static and dynamic balancing, troubleshooting, air and equipment evaluation, and system recommendations. Check out our complete guide to HVLS Fans to learn more about them.
HVLS Fans From Indventech
At Indventech, our HVLS fans are both lightweight and powerful. They feature the following technical specifications:
- Operating speeds: 61–200 rpm, with various increments
- Diameters: 7–24 feet
- Horsepower levels: 5/8 – 1 hp
For additional information about our HVLS, view our product catalog or request a quote today.
| ITEM # | ITEM NAME | FAN SPEED | DIAMETER | POWER |
|---|---|---|---|---|
| 1566 | Titan 24 | 71 rpm | 24 ft | 1 hp |
| 1567 | Titan 20 | 74 rpm | 20 ft | 1 hp |
| 1568 | Titan 18 | 95 rpm | 18 ft | 1 hp |
| 1569 | Titan 16 | 102 rpm | 16 ft | 1 hp |
| 1570 | Titan 14 | 105 rpm | 14 ft | 3/4 hp |
| 1571 | Eco 24 | 61 rpm | 24 ft | 5/8 hp |
| 1572 | Eco 20 | 77 rpm | 20 ft | 5/8 hp |
| 1573 | Eco 18 | 78 rpm | 18 ft | 5/8 hp |
| 1574 | Eco 16 | 95 rpm | 16 ft | 5/8 hp |
| 1575 | Eco 14 | 107 rpm | 14 ft | 5/8 hp |
| 1576 | Eco 12 | 107 rpm | 12 ft | 5/8 hp |
| 1577 | Eco 10 | 139 rpm | 10 ft | 5/8 hp |
| 1578 | Eco 8 | 156 rpm | 8 ft | 5/8 hp |
| 1579 | XP 14 | 108 rpm | 14 ft | 5/8 hp |
| 1580 | XP 12 | 108 rpm | 12 ft | 5/8 hp |
| 1581 | XP 10 | 139 rpm | 10 ft | 5/8 hp |
| 1582 | XP 8 | 156 rpm | 8 ft | 5/8 hp |
| 1583 | XP 7 | 200 rpm | 7 ft | 5/8 hp |

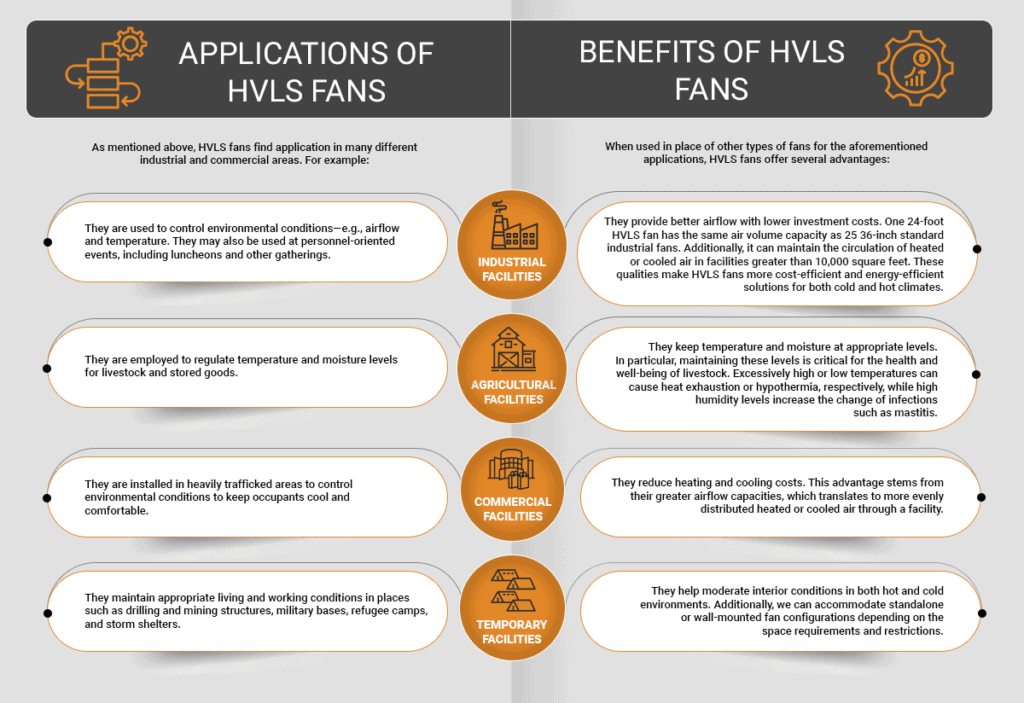

Applications of HVLS Fans
As mentioned above, HVLS fans find application in many different industrial and commercial areas. For example:
- In industrial facilities, such as warehouses and manufacturing floors, they are used to control environmental conditions—e.g., airflow and temperature. They may also be used at personnel-oriented events, including luncheons and other gatherings.
- In agricultural facilities, such as barns, they are employed to regulate temperature and moisture levels for livestock and stored goods.
- In commercial facilities, such as medical offices, shopping malls and sporting centers, and worship centers, they are installed in heavily trafficked areas to control environmental conditions to keep occupants cool and comfortable.
- In temporary facilities, such as drilling and mining structures, military bases, refugee camps, and storm shelters, to maintain appropriate living and working conditions.
Benefits of HVLS Fans
When used in place of other types of fans for the aforementioned applications, HVLS fans offer several advantages:
- For industrial facilities, they provide better airflow with lower investment costs. One 24-foot HVLS fan has the same air volume capacity as 25 36-inch standard industrial fans. Additionally, it can maintain the circulation of heated or cooled air in facilities greater than 10,000 square feet. These qualities make HVLS fans more cost-efficient and energy-efficient solutions for both cold and hot climates.
- For agricultural facilities, they keep temperature and moisture at appropriate levels. In particular, maintaining these levels is critical for the health and well-being of livestock. Excessively high or low temperatures can cause heat exhaustion or hypothermia, respectively, while high humidity levels increase the change of infections such as mastitis.
- For commercial facilities, they reduce heating and cooling costs. This advantage stems from their greater airflow capacities, which translates to more evenly distributed heated or cooled air through a facility.
- For temporary facilities, they help moderate interior conditions in both hot and cold environments. Additionally, we can accommodate standalone or wall-mounted fan configurations depending on the space requirements and restrictions.
